In order to get most efficient and best quality Laser Beam from the CO2/Fiber lasers we equipped,our engineers design the systems with different mechnisms as shown below:

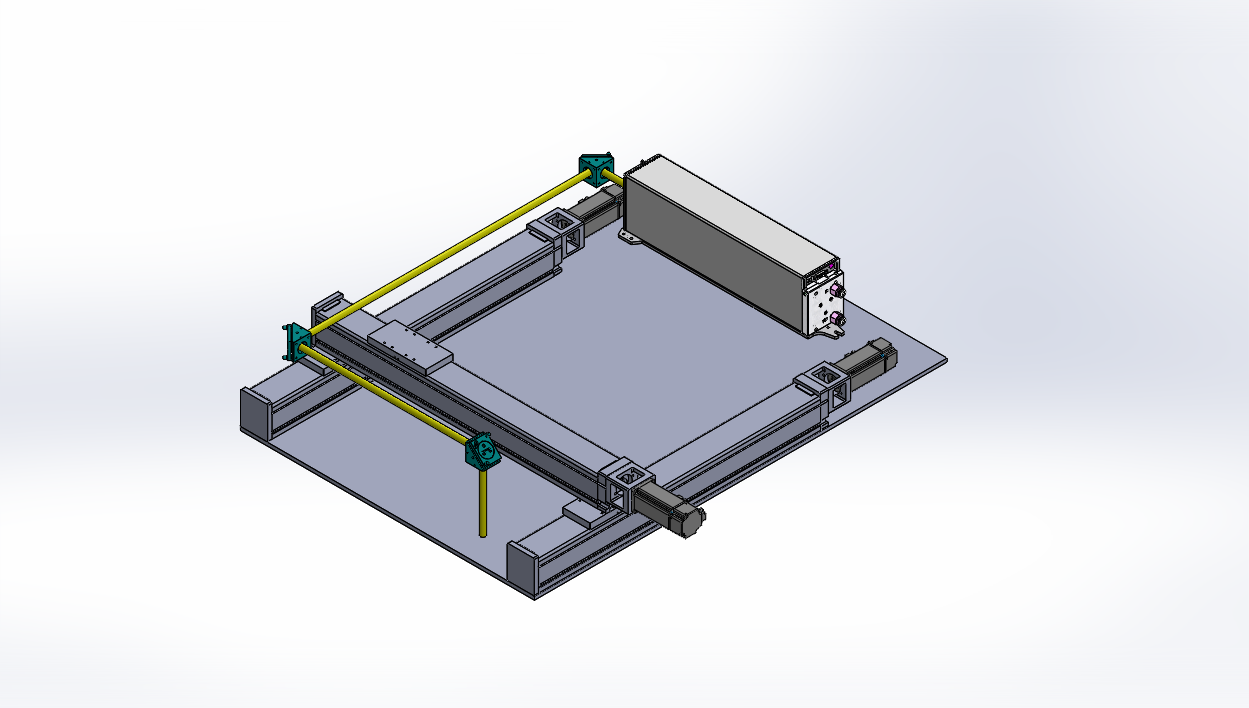

1. F (Flying-Optics) design :
<"F" is shown in the 5th code of LLC product.>
2.B (Beam-Fixed) design :
<"B" is shown in the 5th code of LLC product.>
2.1 B-1 design:
In this configuration, the laser and beam delivery system are fix-mounted in a stationary position.
2.2 B-2 design:

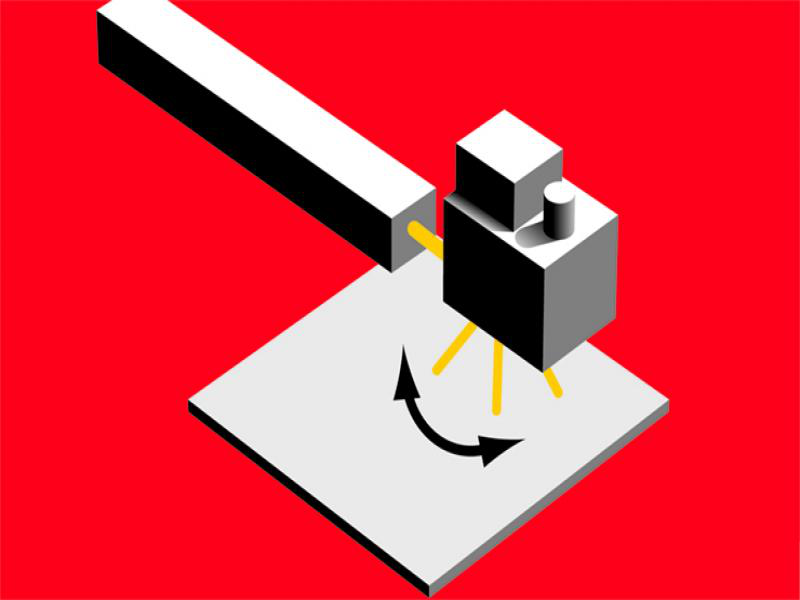

This design uses a computer controlled scanning head to deliver the laser beam to the target material. Galvanometer driven mirrors inside the scanning head steer the beam along 2 - 3 axes enabling coverage across an imaging area, referred to as the field. The size of the field is determined by a number of factors including the scanning head lens configuration, working distance between the scanning head and target material, and if using a 2-axis or 3-axis scanning head.

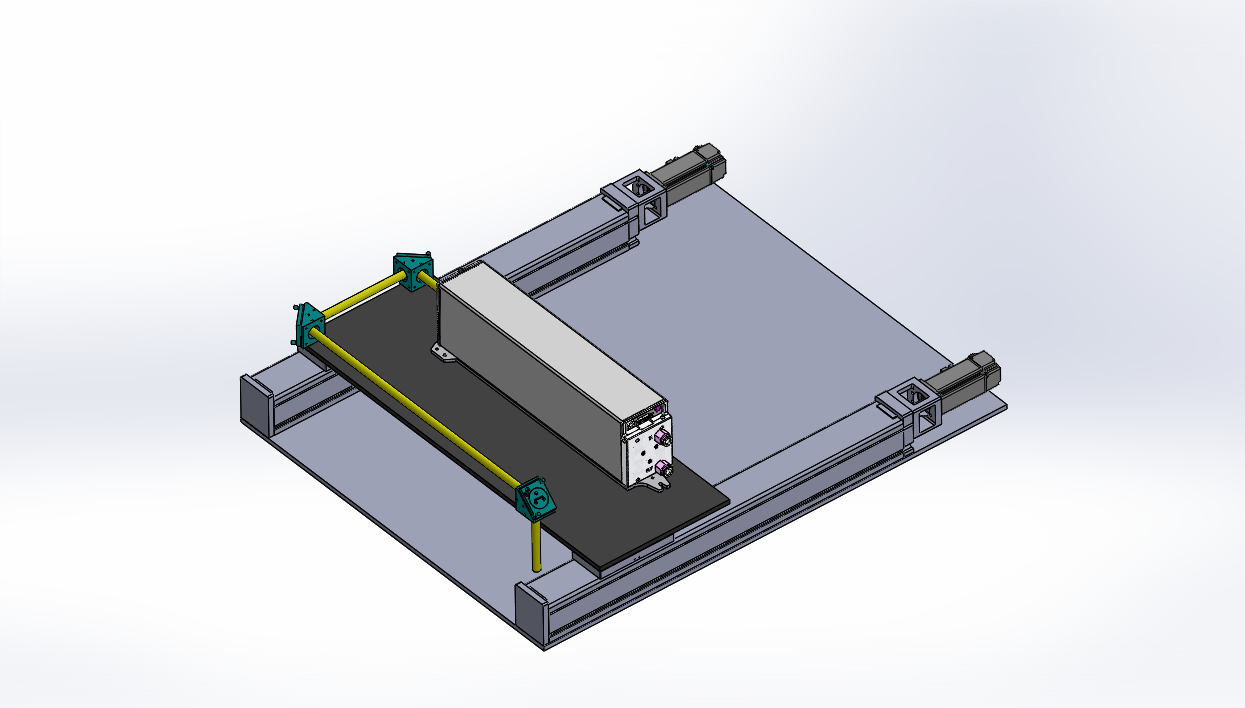

3. H (Half Flying-Optics) design :
<"H" is shown in the 5th code of LLC product.>
For Example :
Example 1 : LLC product code AMCSH-400R-250130 represents it's a RF 400W CO2 laser Cutting system of 250x130cm working area, and with Ball-Screws inside and H design for beam path.
Example 2 : LLC product code AMCSH-300P-250130 represents it's a Pulse 300W CO2 laser Cutting system of 250x130cm working area, and with Ball-Screws inside and H design for beam path.
Example 3 : LLC product code AMCBF-100R-130090 represents it's a RF 100W CO2 laser Cutting system of 130x090cm working area, and with Time-Belt inside and F design for beam path.
Example 4 : LLC product code AMMNB-200F-000000 represents it's a 20W Fiber laser Marking system with No X-Y stage coould be equipped and B design for beam path.
While AMMSB-20F-030030 represents it's a 20W Fiber laser Marking system with a Ball-Screws based X-Y stage of 030x030 cm stroke for both directions, and B design for beam path. (For system of this kind, the working area of single process is determined by f-theta lens choosen)
Example 5 : LLC product code AMPLB-20F-060060 represents it's a 20W Fiber laser Patterning system with a 060x060cm size extended working area made by X-Y table, driven by Linear-Motor and with B design for beam path.
