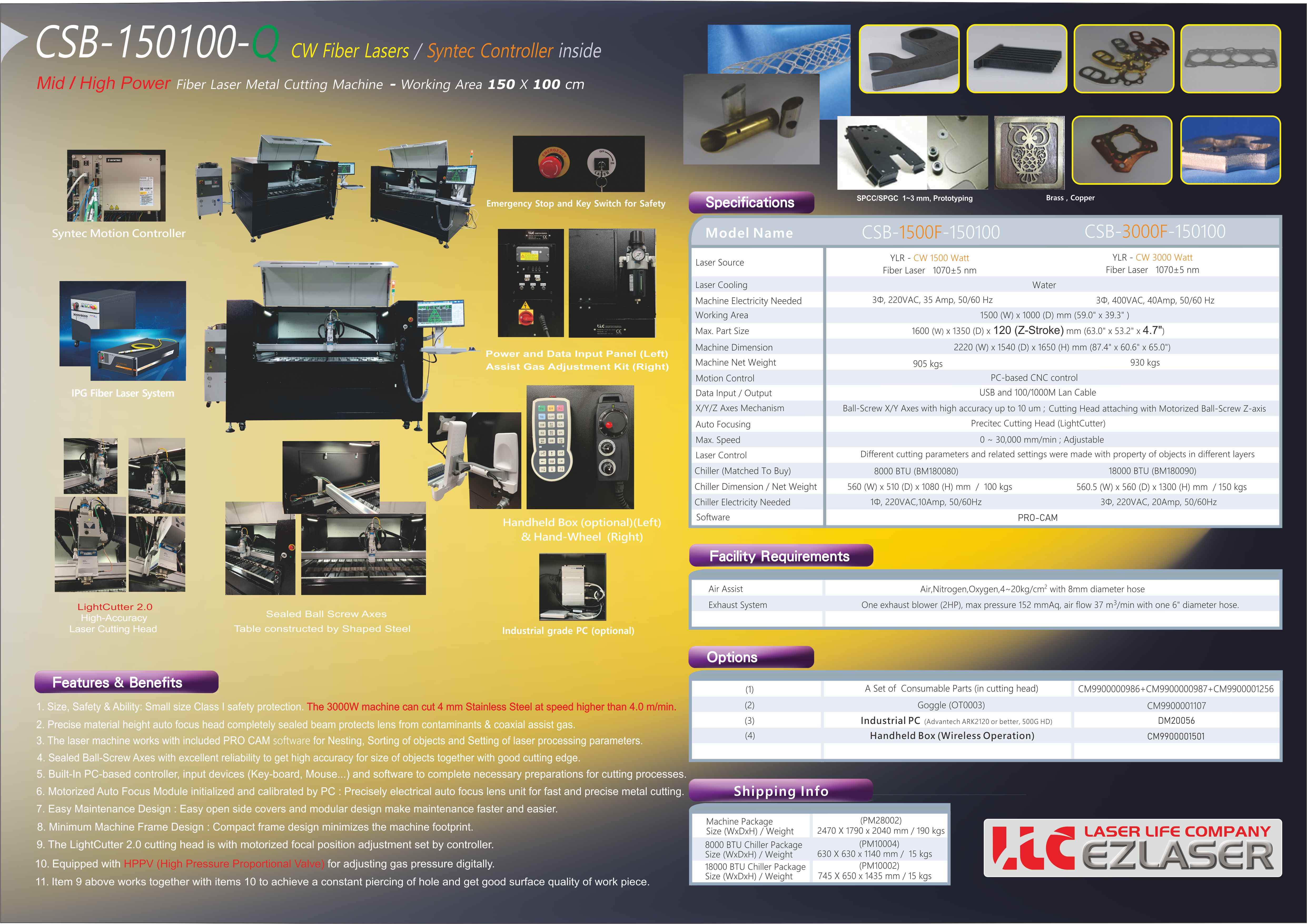

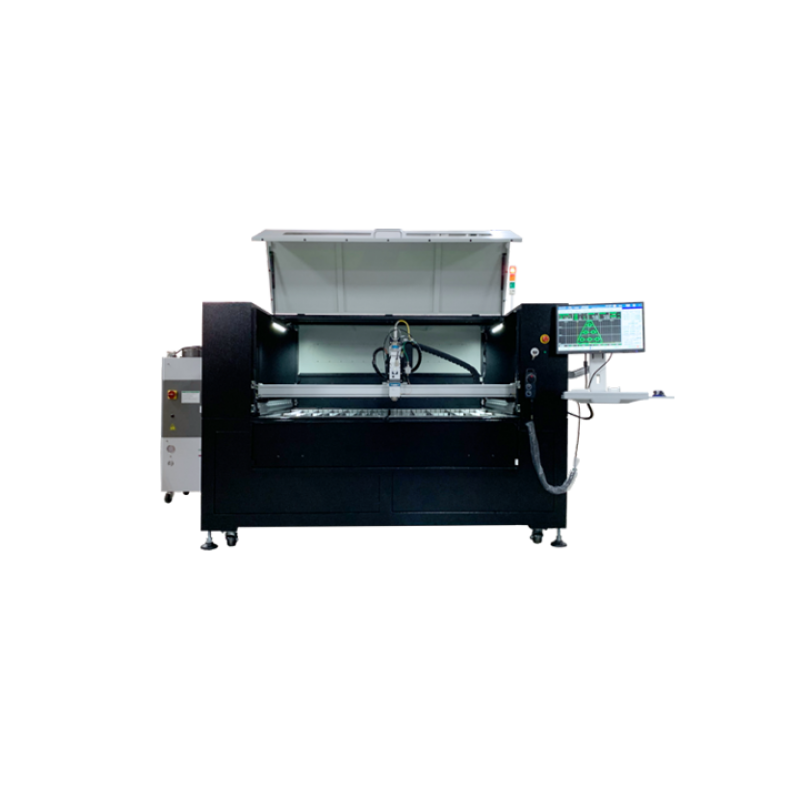

CSB-150100-S Fiber Laser Cutting Machine
Machine Details in English Click here
1. Laser Source: (Made in Germany) IPG YLR-3000 series, wavelength: 1070nm, output power: 3000W.
2. X/Y axis travel: 1500 mm x 1000 mm.
3. Working Area: greater than 1500 mm x 1000 mm.
4. Machine Size: about 2500 mm (length) x 1600 mm (width).
5. Motion System: X/Y axis maximum cutting feed speed: 15M/min. Z-axis electric adjustment, automatically tracking the height of metal materials, Z-axis standard height 50mm.
6. Working Platform: special for cutting - needle support platform.
7. System Safety: The lighting road is fully enclosed for optimal safety. It has a door lock protection switch (laser protection when the door is open).
8. Build-in PRO-CAM software:
8.1 It can be operated remotely through remote computer monitoring and software, which is conducive to specific usage scenarios and obstacle removal.
8.2 Cutting parameters and required gas reference accessories, provide air, oxygen or nitrogen gas depending on the cutting material
9. Processing Capability for different metallic sheets :
Applicable thickness - carbon steel less than 16mm, stainless steel less than 10mm, aluminum less than 6mm, copper less than 4mm, brass less than 4mm.
