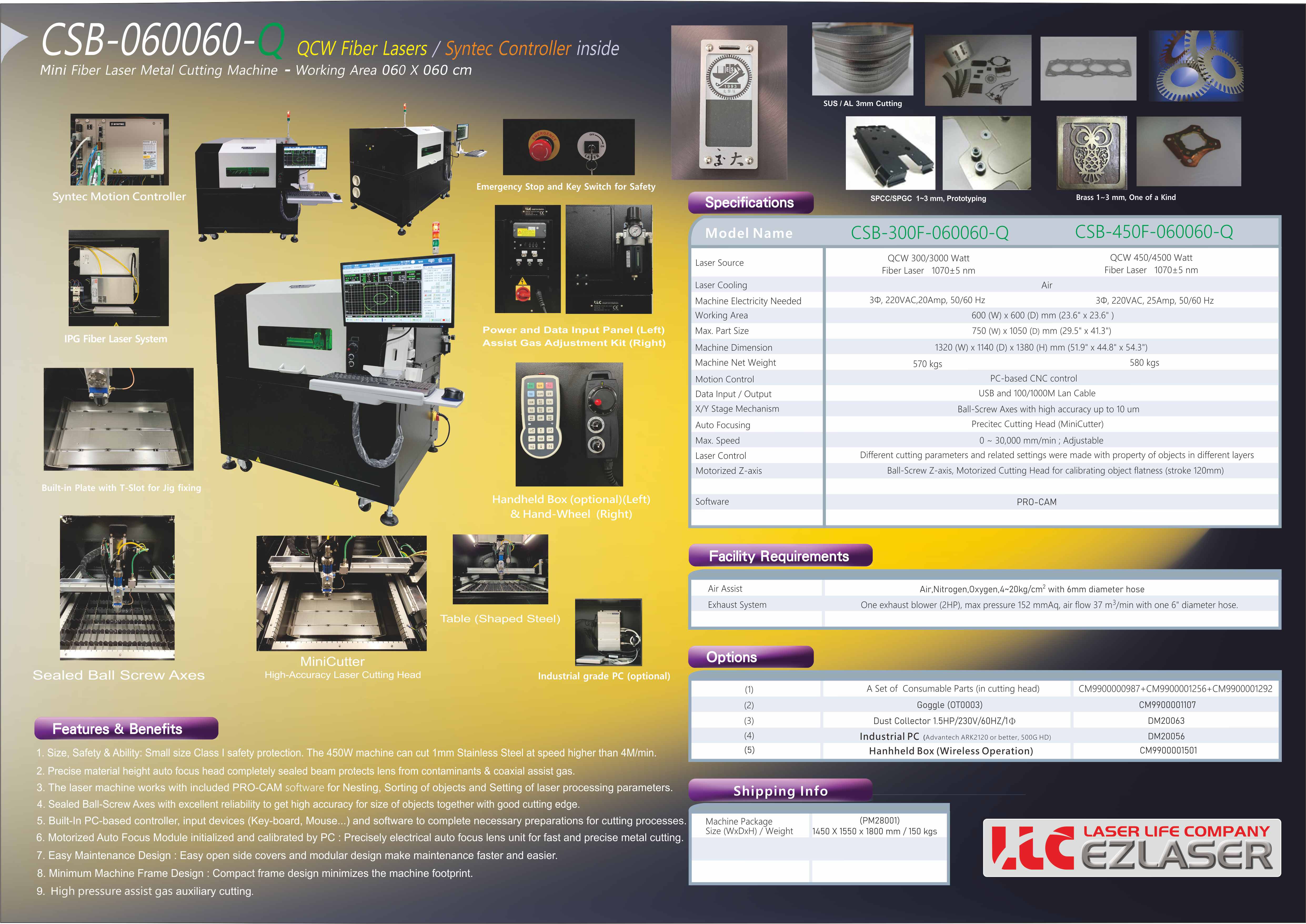

CSB-060060-S Fiber Laser Cutting Machine
Machine Details in English Click here
1. Size, Safety & Ability: Small size Class I safety protection. The 450W machine can cut 1mm Stainless Steel at speed higher than 4M/min.
2. Precise material height auto-focus head completely sealed beam and the assistance of coaxial gas protect lens from contaminants.
3. The laser machine works with PRO-CAM software for nesting, sorting of objects and setting laser processing parameters.
4. Sealed Ball-Screw Axes with excellent reliability to get high accuracy for size of objects together with good cutting edge.
5. Built-In PC-based controller, input devices (Keyboard, Mouse...) and software to complete necessary preparations for cutting processes.
6. Motorized Auto Focus Module initialized and calibrated by PC : Precisely electrical auto focus lens unit for fast and precise metal cutting.
7. Easy Maintenance Design : Easy open side covers and modular design make maintenance faster and easier.
8. Minimum Machine Frame Design : Compact frame design minimizes the machine footprint.
9. Assist-gas pressure of O2 and N2 could be adjusted digitally for best cutting quality of thicker metallic sheet.
