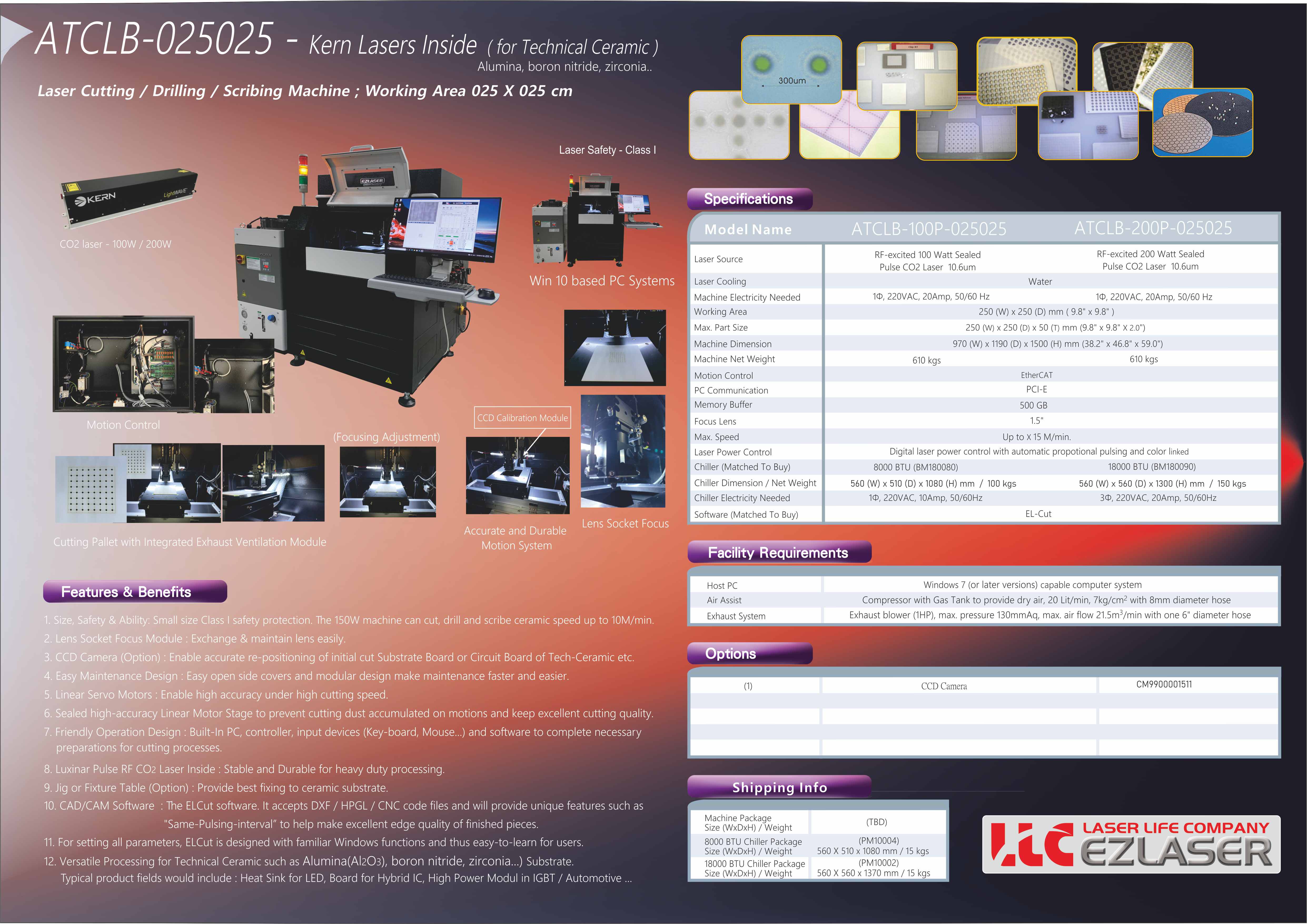

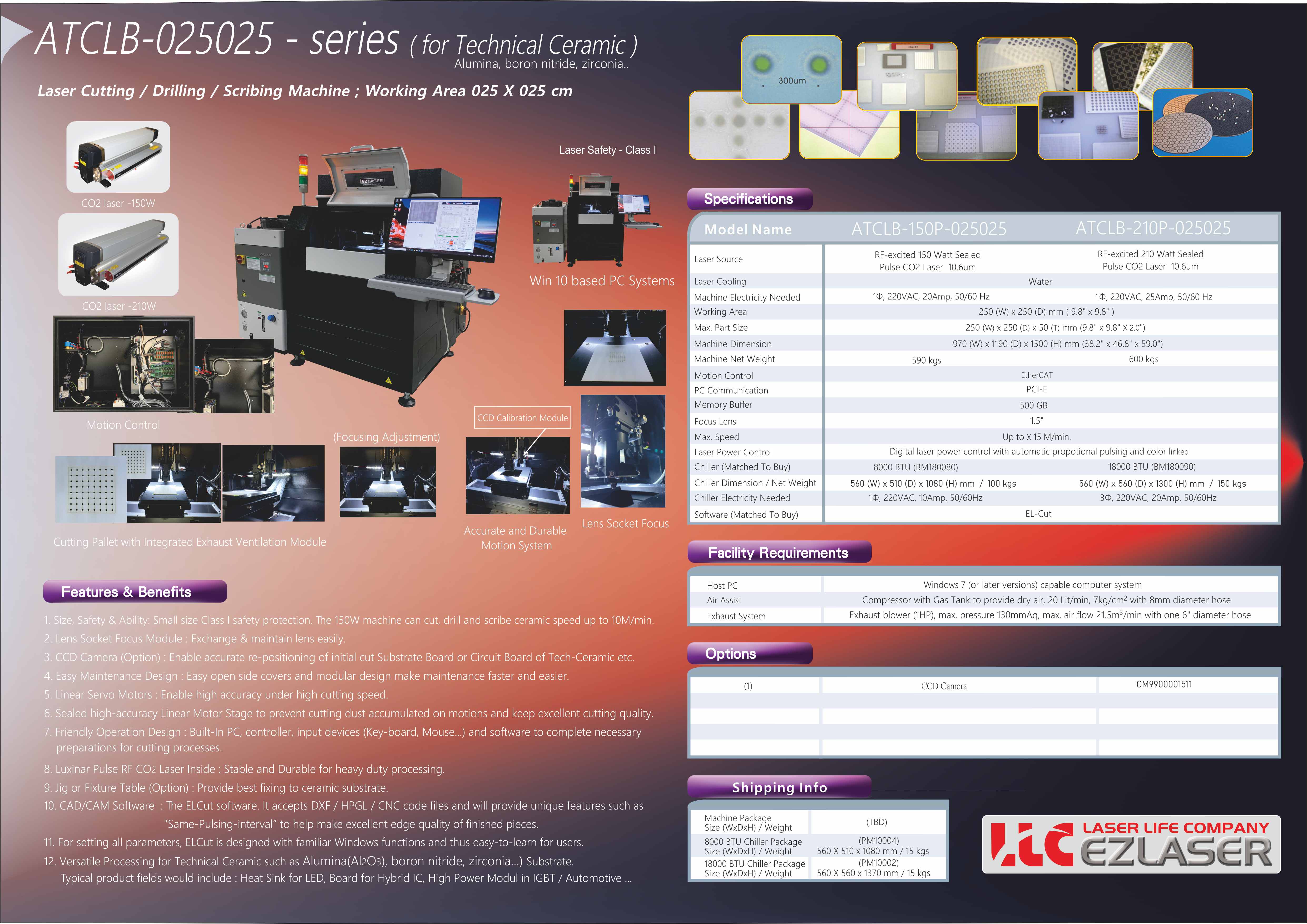

ATCLB-025025 CO2 Laser Cutting / Scribing Machine
Machine Details in English Click here
ATCLB-025025 CO2 Laser Drilling / Cutting / Scribing Machine for Technical Ceramic
(Pulse CO2 Laser Inside, Linear-Motor, Working Area: 025x025 cm)
Key features:
1. CO2/fiber laser or UV laser (depending on customer material and needs).
2. X/Y axis travel: Linear motor 250x250mm (inclusive) or bigger
3. X/Y axis squareness: +/- 20μm
4. Repeatability : +/- 2 μm
5. Straightness/flatness +- 20 μm
6. Movement Speed: 1~15000mm/min adjustable
7. Machining platform size: 250x250x70mm
8. X/Y axis motion control, linear/arc tween motion.
9. Computer color screen human-machine interface, convenient for setting the processing parameter.
10. Optional CCD positioning module for cutting etc.
This machine is an excellent choice for Cutting, Drilling and Scribing below technical ceramic substrate :
1. alumina
2. boron nitride
3. zirconia
4. aluminium nitride
