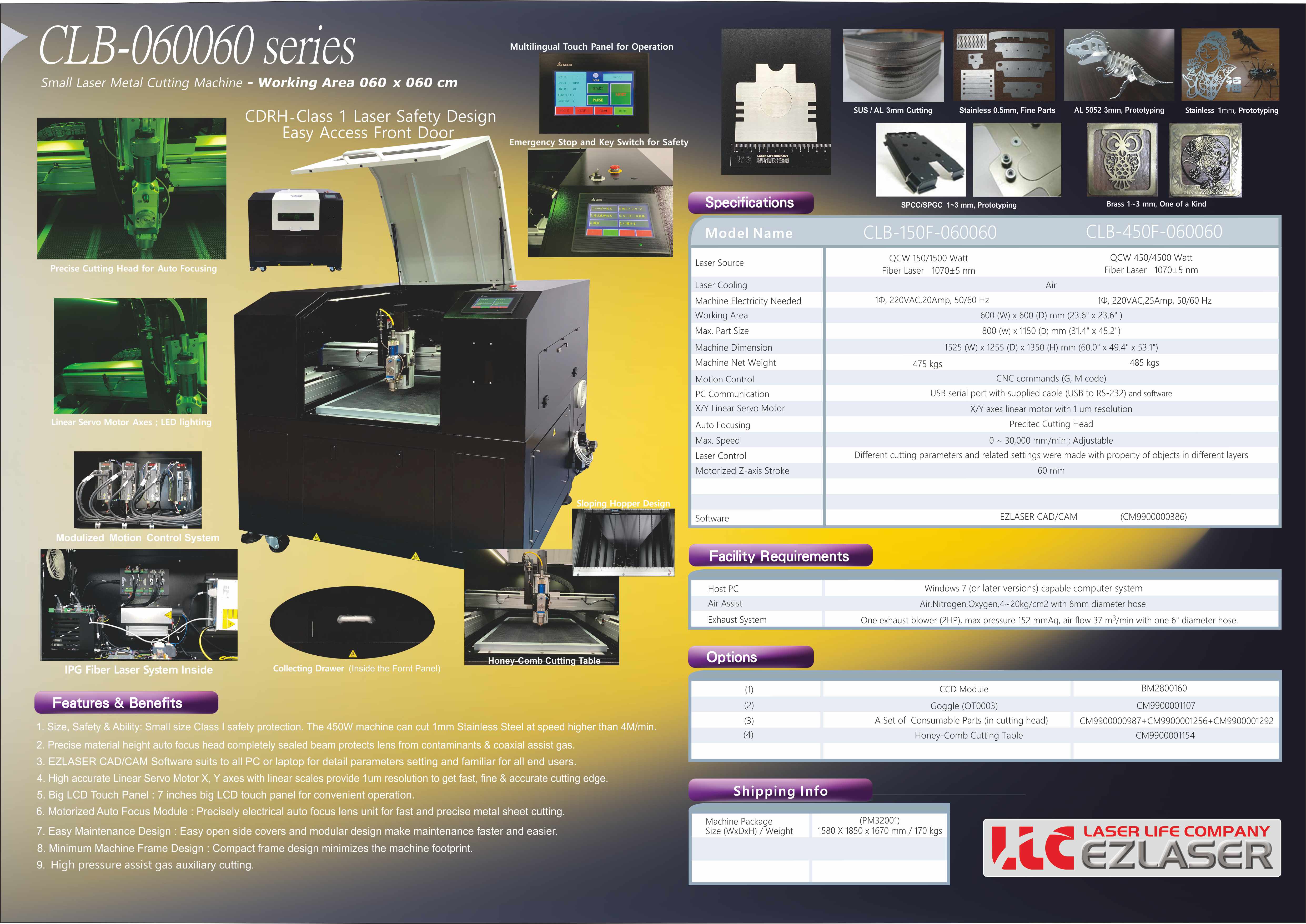

CLB-060060 Fiber Laser Cutting Machine
Machine Details in English Click here
1. Built by Sealed Linear Motor Axes with excellent reliability to get high accuracy (1um) for size of objects together with good cutting edge.
2. Working with locally installed commercial PC of Windows OS and CAD (AutoCAD …) drawing software, operator will be easy to learn all software functions for being familiar with the user-interface of Windows.
3. This laser machine was sold together with the EZLASER CAD/CAM software for nesting, sorting of objects and setting laser processing parameters.
4. Size, Safety & Ability: Small size Class I safety protection. The 450W machine can cut 1mm Stainless Steel at speed higher than 4M/min.
5. Precise material height auto-focus head completely sealed beam and the assistance of coaxial gas protect lens from contaminants.
6. Motorized Auto Focus Module initialized and calibrated by PC : Precisely electrical auto focus lens unit for fast and precise metal cutting.
7. Easy Maintenance Design : Easy open side covers and modular design make maintenance faster and easier.
8. Minimum Machine Frame Design : Compact frame design minimizes the machine footprint.
9. Assist-gas pressure of O2 and N2 could be adjusted digitally for best cutting quality of thicker metallic sheet.
