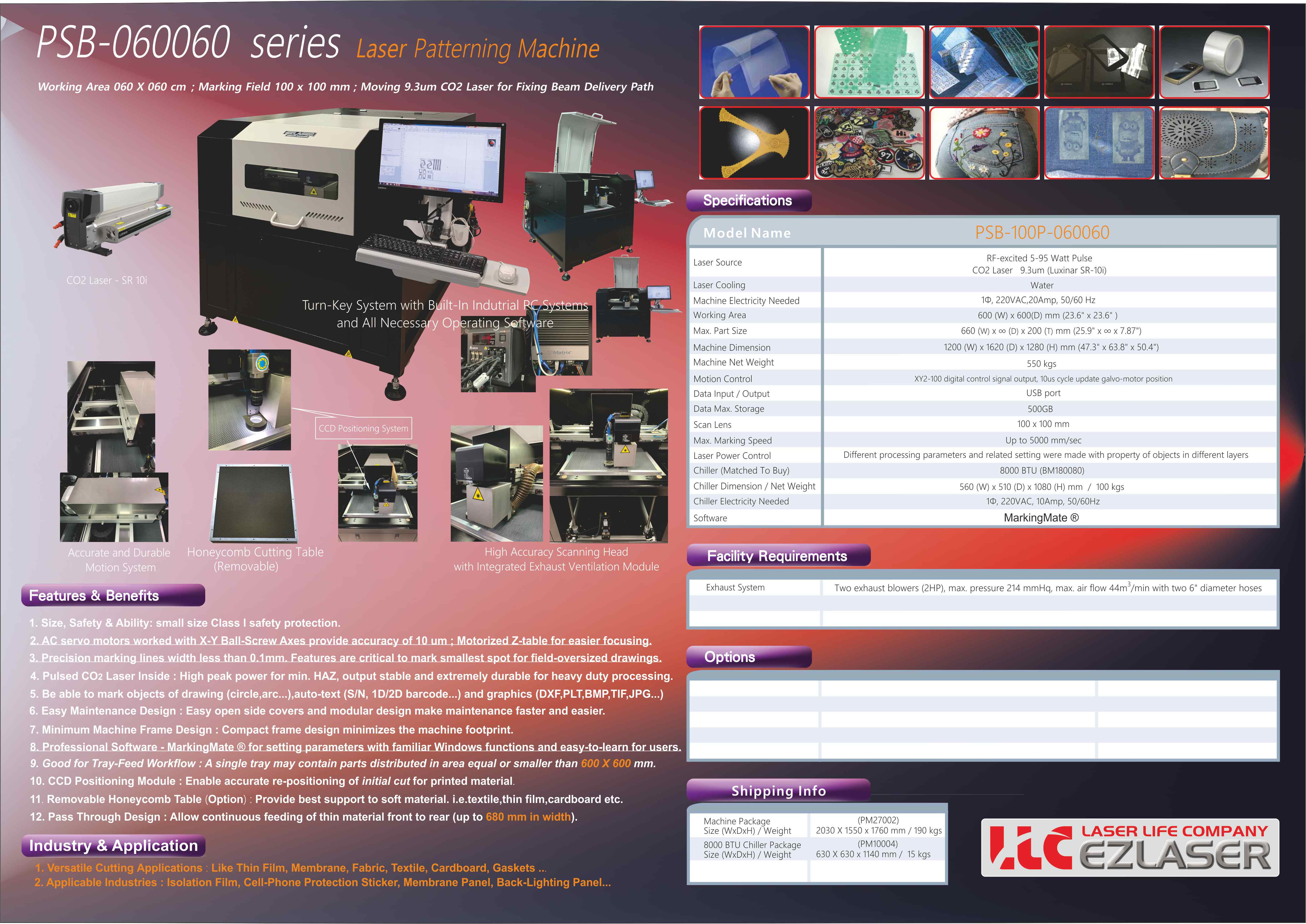

PSB-060060 CO2 Laser Patterning Machine
Machine Details in English Click here
1. Size, Safety & Ability: small size Class I safety protection.
2. Motorized Ball-Screw Axes with excellent accuracy actuates Z-axis movement for focusing.
3. Precision and fine marking lines width less than 1 mm.
4. Luxinar / Kern Pulse CO2 Laser Head Inside : Stable output power and extremely durable for heavy duty processing.
5. Utilizing multi-lingual MakingMate software for setting parameters, with familiar Windows functions and easy-to-learn for users. Be able to engrave objects deeply with drawing (circle, arc...),auto-text (S/N, 1D/2D barcode) and graphics (DXF,TIF,JPG...). Provide Grid Method and Scale Method for precise distortion compensation. Formula method provides barrel, trapezoid and parallelogram 3 kinds of distortion correction. Allow users to name, save, and load the marking parameters. It provides a user-friendly operation window for quick execution/input of commands such as signal input, signal output, pause, delay time, motion, current position setting, loop, home return, zoom, port output, port input, and power setting. Users are allowed to edit the parameters of this object: Digital In, Digital Out, Do Pause, Delay. User Level is divided into Operator, Programmer, and Administrator to separate user's authorities.
6. Optional advanced features of the software includes : Rotary Axis Positioning Marking, Mark On Fly, 2.5D/3D Marking, Dual Head Marking, Computer Vision Positioning Marking…
7. Easy Maintenance Design : Easy open side covers and modular design make maintenance faster and easier.
8. Minimum Machine Frame Design : Compact frame design minimizes the machine footprint.
9. With the Pulse-Duration-Selectable feature, users can make different effects of marking on material. For example, users can make colored marks on surface of stainless steel with almost all colors...
10. Extended applacations include : Fine Cutting of Mylar / PET films...
